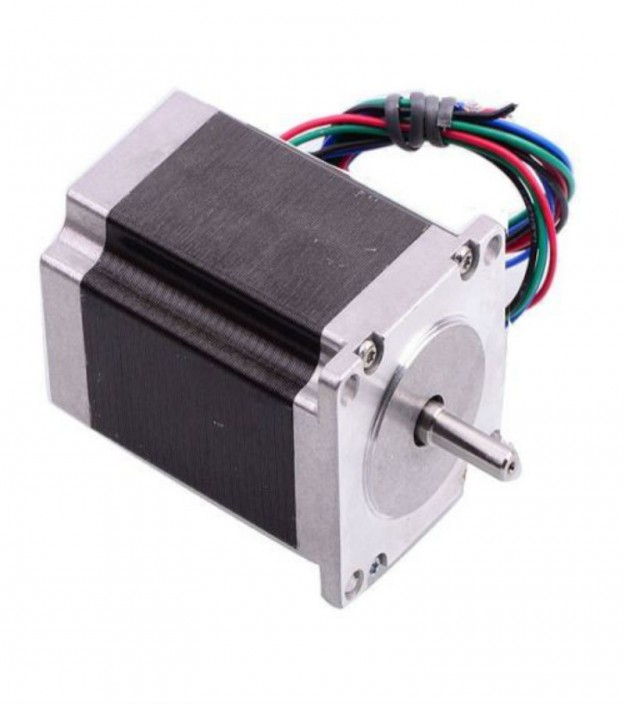

Stepper Motor NEMA 23 18.9 kg-cm Bipolar Hybrid 6 pin

Special Price 1,599.00

3 Stock

Quick Overview

Item Condition

New

A brand-new, unused and undamaged item.



Specifications –



 Item  Specifications
Rated Voltage (V) 3.2
Current/ phase (A) 2.8
Resistance/ phase (ohms) 1.13
Inductance/ phase (mH) 3.6
Holding Torque (kg-cm) 18.9

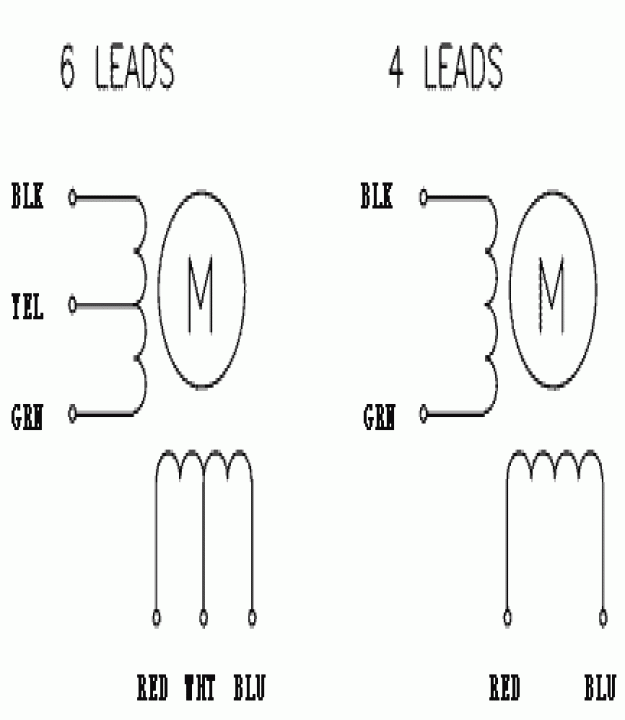

No. of Leads 6
Rotor Inertia 480
Weight (kg) 1
Detent Torque (kg-cm) 0.68
Length (mm) 76
 Step Angle  1.8°
 Step Angle Accuracy  ±5% (full step, no load)
 Resistance Accuracy  ±10%
 Inductance Accuracy  ±20%

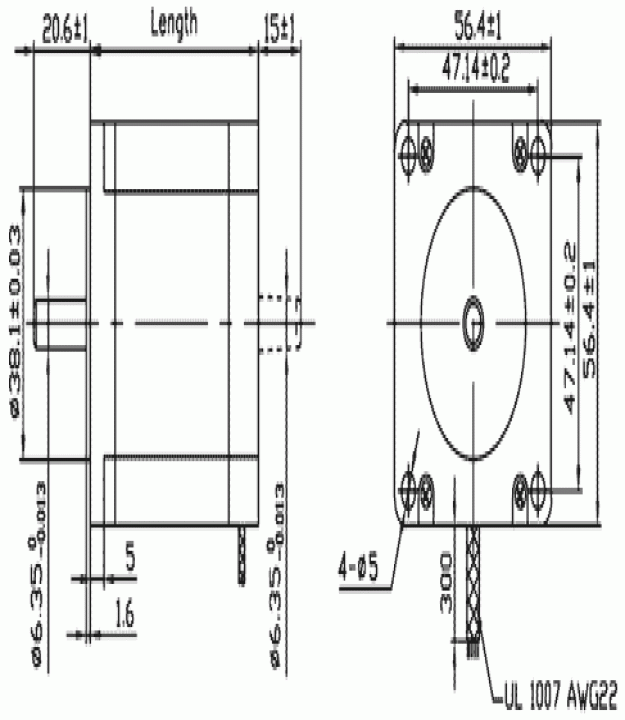

Frame Size (mm)  57x57
Shaft Length (mm)  20.6
Shaft Diameter (mm)  6.35
Length (mm)  76
Weight (kg)  1
